2004494 | Microtherm

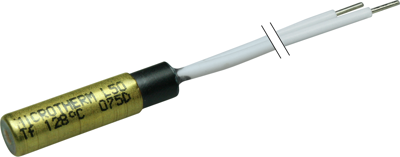

Thermal fuse, 128 °C, 250 V, 10 A, radial
Active
Product by Microtherm at Bürklin Elektronik
Thermal fuses, type Microtherm L50.
Rated voltage: 250 VAC. Rated current: 10 A. Tolerance: ±5.0 K. Connection: 240 mm wire with silicon insulation, 1.0 mm diameter. Versions: design G 900 with plastic housing, design G 902/G 913 with brass housing.
Technical attributes (rated switching temperature, design): 128 °C, G 902
| Design | radial | |
| Rated temperature | 128 °C | |
| Limit temperature | 205 °C | |
| Rated voltage (AC) | 250 V | |
| Rated current | 10 A |
| Country of origin | DE |
| Customs tariff number | 85361010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
