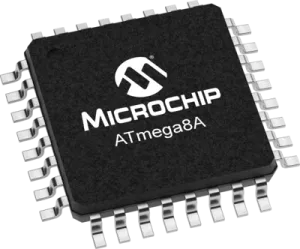

ATMEGA8A-AU | Microchip
AVR microcontroller, 8 bit, 16 MHz, TQFP-32, ATMEGA8A-AU
Active
Product by Microchip at Bürklin Elektronik
CMOS 8-bit microcontroller, ATMEGA8A-AU, ATMEL
The ATMEGA8A-AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, it achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Features
- Advanced RISC architecture
- High endurance non-volatile memory segments
- In-System programming by on-chip boot program
- True read-while-write Operation
- Programming lock for software security
| Number of I/Os | 23 | |
| Number of pins | 32 | |
| Version | Flash | |
| Enclosure | TQFP-32 | |
| Core Size | 8 bit | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Processor core | AVR | |
| Data RAM Size | 1 KB | |
| Voltage | 2.7-5.5 V | |
| Memory size | 8 KB | |
| Clock frequency | 16 MHz |
| Country of origin | TW |
| Customs tariff number | 85423190 |
| MSL | MSL 1 |
| Original Packaging | Tray with 250 pieces |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
