RFP-BL2 | METCAL

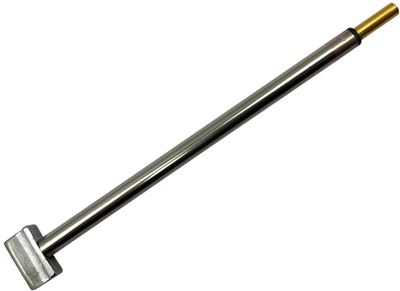

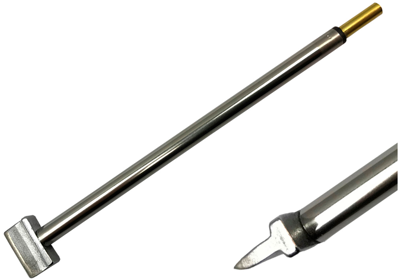

Soldering tip, Blade shape, (L x W) 9.14 x 15.6 mm, 390 °C, RFP-BL2
Unit Price (€ / pc.)
106.148 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Solder tip cartridges, RFP-BL2, Metcal
RxP-Blade/Quad Solder Tip Cartridges are the rework tips for the Metcal MFR-series soldering systems. The second letter in the part number designates the temperature series. RFP-Cartridges are nominally 390 ˚C. Metcal recommends the RFP temperature series for most applications. However, there is a higher temperature range designated RCP, nominally 450 ˚C, for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal SmartHeat®-Technology“ will adjust the power levels during soldering to suit the application.
Technical specifications
| Version | solder cartridge | |
| Width | 15.6 mm | |
| Suitable for | MFR-1110, MFR-2210/11, MFR-1351, MFR-SRC, solder pen MFR-H1-SC /-SC2, MFR-HSR, solder-kit MFR-UK1 | |
| Length | 9.14 mm | |
| max. operating temperature | 390 °C | |
| Peak type | Blade shape |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85151990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
