DX-255 | METCAL

Soldering system, DX-255, METCAL

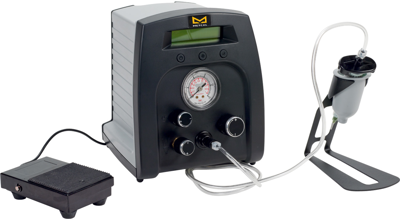

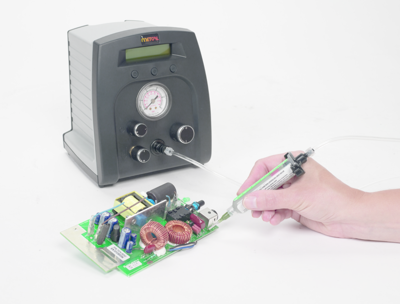

The DX-255 controller is economical, highly precise, and repeatable. They are equipped with a digital timer and a continuously adjustable vacuum suction back to prevent the dripping of low- and high-viscosity media from pulling threads. An RS-232 interface enables connection to a PLC. The working pressure is adjustable via a precision valve from 0 to 1 bar for low-viscosity media.

Features

• Small footprint and lightweight economical dispenser
• Highly accurate and repeatable micro-air dispensing
• Digital timer and vacuum controls
• Available in two versions of operating pressure: 0 to 100 psi for general applications, and 0 to 15 psi for specific low viscosity applications
• Universal power supply, foot switch, air hose, sample tips, syringe barrels & adapter
• I/O Interface for robotic applications

Ordering information

• Foot Switch
• Power Supply
• Sample Tip Kit
• 10cc Receiver Head Kit
• Mounting Brackets
• Receiver Head Air Hose Holder
• Syringe Barrel Stand
