3H32ET-25.000 | Mercury

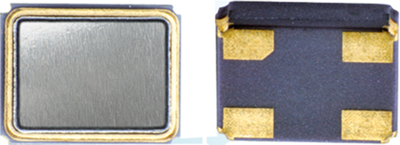

Crystal oscillator, 25 MHz, ±50 ppm, 15 pF, SMD, (L x W x H) 3.2 x 2.5 x 1 mm, 3H32ET-25.000
Order No.: 77D709
EAN: 4099879147080
MPN:
3H32ET-25.000
Unit Price (€ / pc.)
1.6065 € *
Available: 120 pcs.
SMD quartz oscillators, type Mercury 3H32ET.
Frequency stability: ±50 ppm. Operating temperatures: –40 to +85 °C. Input voltage: 3.3 V. Input current: 8.0 mA (ab 20 MHz 15 mA), Logic HIGH/LOW: min. 2.97 V/max. 0.33 V. Rise and decay time: max. 10 ns. Dimensions: 3.2 x 2.5 x 1.0 mm.
Type: 25.000000 MHz
Technical specifications
| Filter | Property | Value |
|---|---|---|
| nominal frequency | 25 MHz | |
| Frequency stability | ±50 ppm | |
| Assembly | SMD | |
| Length | 3.2 mm | |
| Width | 2.5 mm | |
| Height | 1 mm | |
| Capacity | 15 pF | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423911 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
