1831.2151 | Mentor
Cermet trimmer potentiometer, 50 kΩ, 0.5 W, THT, lateral, 1831.2151
Unit Price (€ / pc.)
17.017 € *
Standard delivery time from the manufacturer is: On Request
Trimmer potentiometer, 1831.2151, Mentor

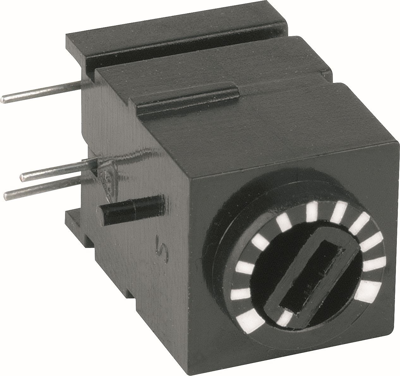

The collar on the face of the cermet-potentiometer is provided with a scale for optical setting of the value of resistance and serves simultaneously as subbase in the front panel. The potentiometer can easily be operated by means of a screw driver and a vector of infinitesimal rotation of 260 degrees. The components are equipped with a fixing pin which serves as additional mechanical fixation point on the printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rotary range, electrical | 230 ° | |
| Length | 16.76 mm | |
| max. operating temperature | 85 °C | |
| Height | 10.1 mm | |
| Version | cermet trimmer potentiometer | |
| Connection | solder pin | |
| Contact distance | RM 2.54 | |
| Mechanic rotary range | 260 ° | |
| Assembly | THT | |
| ohmic resistance | 50 kΩ | |
| Power | 0.5 W | |
| Tolerance | ±20 % | |
| Temperature coefficient | ±100 ppm/K | |
| min. operating temperature | -25 °C | |
| Width | 10.1 mm | |
| Track Taper | linear | |
| Seeting | lateral |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Country of origin | TN |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
