M.1092R | Mentor
LED signal light, red, Mounting Ø 14 mm, pitch 2.54 mm, LED number: 1
Unit Price (€ / pc.)
12.0309 € *
Available: 36 pcs.
Leadtime: 1 Week **
Total Price:
12.03 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0309 €
10 pcs.
10.5910 €
50 pcs.
9.8651 €
150 pcs.
9.4367 €
500 pcs.
8.9488 €
*incl. VAT plus shipping costs
**Subject to prior sale

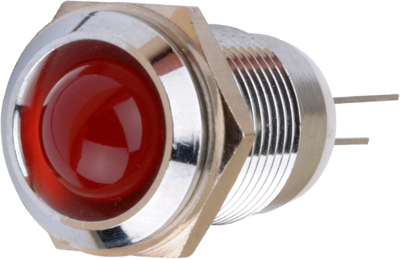

LED signal lamps, type Mentor RTM 1092.
Diode diameter: 10 mm. Housing material: CuZn, chrome finished. Insert: POM, white. Connections: tinned. Operating temperatures: –40 to +85 °C. Bushing mount: M14 x 1.
Technical attributes (type, LED color, on-state voltage (typically) at 20 mA, on-state current (max.), wavelength, luminous intensity (min./typically) at 20 mA): RTM 1092 R, super red, 2.0 V, 30 mA, 625 nm, 36/100 mcd
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 10 mm | |
| Installation diameter | 14 mm | |
| Farbe der Beleuchtung | red | |
| Assembly | central Mounting | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
