2694.3083 | Mentor

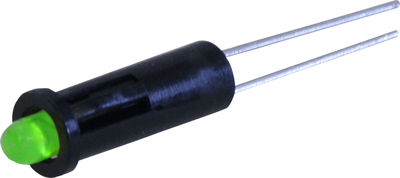

LED signal light, 2.2 V (DC), green, 5 mcd, Mounting Ø 5 mm, pitch 2.54 mm, LED number: 1
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Leadtime: On Request **
LED signal lamps, low-current version, type Mentor 2694.
Diode diameter: 3.0 mm, for front-panel mounting, snap-on fastener. Mounting hole: ø 5.0 mm. Panel thickness: 0.8 to 3.0 mm. Housing material: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C.
Without series resistor, type 2694.
Technical attributes (type, LED color, on-state voltage (typically) at 20 mA, on-state current (max.), wavelength, luminous intensity (min./typically) at 2.0 mA): 2694.3083, green, 2.2 V, 25 mA, 568 nm, 0.7/2.0 mcd
Technical specifications
| Connection | PCB connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 3 mm | |
| Installation diameter | 5 mm | |
| Farbe der Beleuchtung | green | |
| Luminous intensity | 0.005 cd | |
| Assembly | snap-in | |
| Rated voltage (DC) | 2.2 V | |
| Rated current | 2 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
