2665.8301 | Mentor

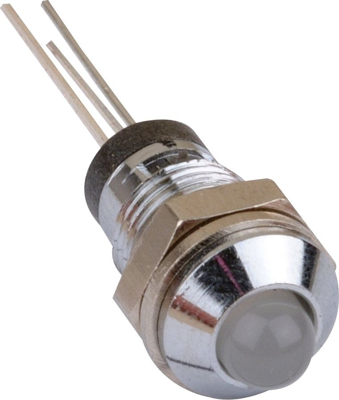

LED signal light, 24 V (DC), orange-red/green, 2.5 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1
Unit Price (€ / pc.)
8.4847 € *
Available: 98 pcs.
Leadtime: 2 Weeks **
Total Price:
8.48 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4847 €
10 pcs.
7.4613 €
100 pcs.
6.5450 €
250 pcs.
6.2951 €
1000 pcs.
5.8905 €
*incl. VAT plus shipping costs
**Subject to prior sale
Signal lamps with duo LEDs, type Mentor 2664../2665.
Diode diameter: 5.0 mm, with or without integrated series resistor, inner or outer reflector. Housing material: CuZn, chrome finish or dull black. Insert: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C. Technical data LED: Color: orange-red/green. On-state voltage (typically) at 20 mA: 2.0/2.4 V. On-state current (max.): 30 mA. Wavelength: 619/564 nm. Luminous intensity (min./typically) at 10 mA: 1.0/2.5 mcd. Lens color: white/diffuse Bushing mount: M 8 x 0.75.
With outer reflector, chrome finished, type 2665.
Technical attributes (type, with/without series resistor): 2665.8301, with series resistor, 24 V
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Installation diameter | 8 mm | |
| Farbe der Beleuchtung | orange-red/green | |
| Luminous intensity | 0.0025 cd | |
| Assembly | central Mounting | |
| Rated voltage (DC) | 24 V | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
