2664.3021 | Mentor
LED signal light, red, 10 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1
Unit Price (€ / pc.)
7.5684 € *
Available: 94 pcs.
Leadtime: On Request **
Total Price:
7.57 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5684 €
10 pcs.
6.6640 €
100 pcs.
5.8429 €
250 pcs.
5.6168 €
1000 pcs.
5.2479 €
*incl. VAT plus shipping costs
**Subject to prior sale

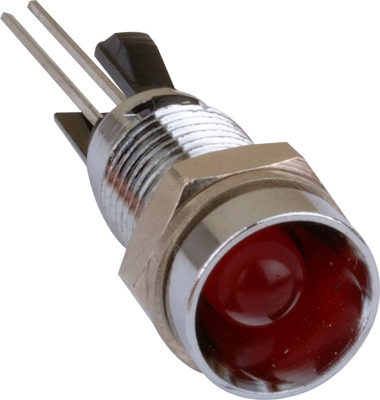

LED signal lamps, low-current version, type Mentor 2664../2665.

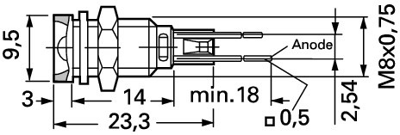

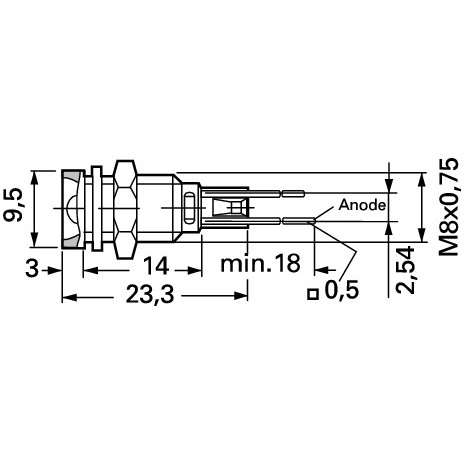

Diode diameter: 5.0 mm, inner or outer reflector, removable snap-on insert. Housing material: CuZn, chrome finished. Insert: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C. Bushing thread: M 8 x 0.75.
With inner reflector, type 2664.
Technical attributes (type, LED color, on-state voltage (typically) at 20 mA (yellow and green at 2.0 mA), on-state current (max.), wavelength, luminous intensity (min./typically) at 2.0 mA (green at 20 mA)): 2664.3021, super red, 2.0 V, 30 mA, 625 nm, 0.7/5.0 mcd
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Installation diameter | 8 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 0.01 cd | |
| Assembly | central Mounting | |
| Rated current | 2 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
