2663.3021 | Mentor

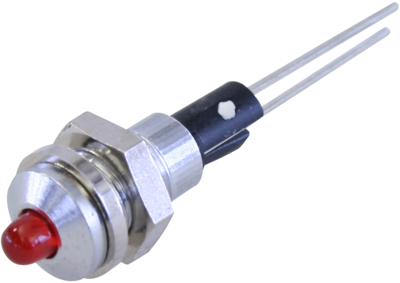

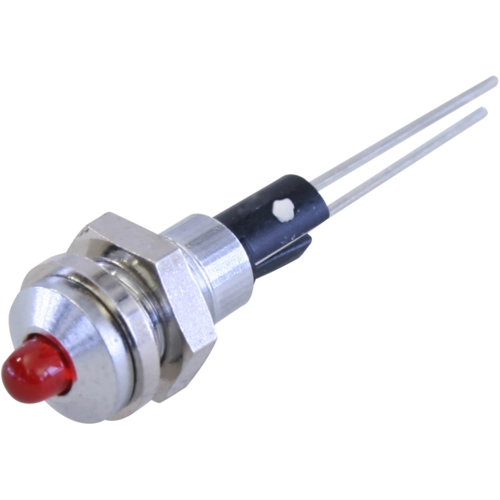

LED signal light, red, 4 mcd, Mounting Ø 6 mm, pitch 2.54 mm, LED number: 1
Unit Price (€ / pc.)
3.6652 € *
Available: 362 pcs.
Leadtime: 8 Weeks **
Total Price:
3.67 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6652 €
10 pcs.
3.2249 €
100 pcs.
2.8203 €
250 pcs.
2.7132 €
1000 pcs.
2.5466 €
*incl. VAT plus shipping costs
**Subject to prior sale
LED signal lamps, low-current version, type Mentor 2662../2663.
Diode diameter: 3.0 mm, inner or outer reflector, removable snap-on insert. Housing material: CuZn, chrome finished. Insert: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C. Bushing mount: M 6 x 0.75.
With outer reflector, type 2663.
Technical attributes (type, LED color, on-state voltage (typically) at 20 mA, on-state current (max.), wavelength, luminous intensity (min./typically) at 2.0 mA): 2663.3021, super red, 2.0 V, 30 mA, 625 nm, 0.7/3.0 mcd
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 3 mm | |
| Installation diameter | 6 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 0.004 cd | |
| Assembly | central Mounting | |
| Rated current | 2 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
