2662.8081 | Mentor
LED signal light, green, 20 mcd, Mounting Ø 6 mm, pitch 2.54 mm, LED number: 1
Unit Price (€ / pc.)
4.4268 € *
Available: 51 pcs.
Leadtime: 2 Weeks **
Total Price:
4.43 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4268 €
10 pcs.
3.8913 €
100 pcs.
3.4153 €
250 pcs.
3.2844 €
1000 pcs.
3.0702 €
*incl. VAT plus shipping costs
**Subject to prior sale

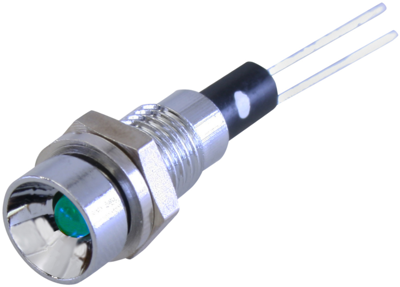

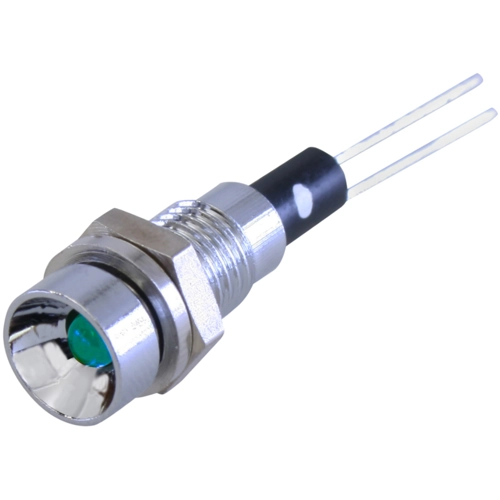

LED signal lamps, type Mentor 2662../2663.
Diode diameter: 3.0 mm, inner or outer reflector, removable snap-on insert. Housing material: CuZn, chrome finished or dull black. Insert: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C. Bushing mount: M 6 x 0.75.
With inner reflector, chrome finished, type 2662.
Technical attributes (type, LED color, on-state voltage (typically) at 20 mA, on-state current (max.), wavelength, luminous intensity (min./typically) at 10 mA (blue at 20 mA)): 2662.8081, green, 2.2 V, 25 mA, 568 nm, 8.0/20 mcd
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 3 mm | |
| Installation diameter | 6 mm | |
| Farbe der Beleuchtung | green | |
| Luminous intensity | 0.02 cd | |
| Assembly | central Mounting | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
