1905.2221 | Mentor
LED display, horizontal, 2 V, red, 50 mcd, pitch 2.54 mm, LED number: 3, 1905.2221
Order No.: 39G1780
MPN:
1905.2221
19052221
Unit Price (€ / pc.)
2.4514 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.3324 €
25 pcs.
2.2015 €
50 pcs.
2.0706 €
100 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale
Multiple LED display, 1905.2221, Mentor

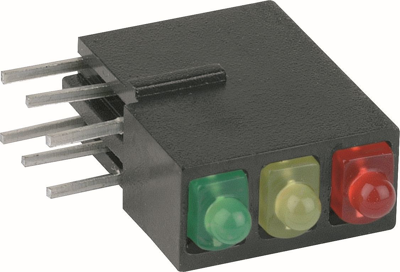

The LED module described as FEL is a front panel assembly element that has been developed as a display element for the 19-inch structure system. The system is based on a basic grid size of 2.54 mm. The casing is provided with a guide rail and a groove that intersect with each other when connecting. This component with lateral fins and grooves, which interlock when being stacked, guarantees appropriate stabilization on the printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | horizontal | |
| Connection | PCB connection | |
| Diode Diameter | 3 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 0.05 cd | |
| Assembly | through hole | |
| Rated voltage | 2 V | |
| Rated current | 20 mA | |
| Grid | 2.54 mm | |
| Number of LEDs | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
