1845.6032 | Mentor

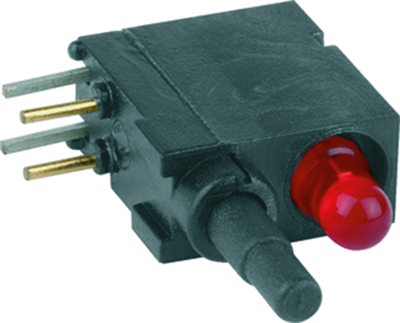

Pushbutton, 1 pole, black, illuminated (red), 0.5 A/60 V, IP50, 1845.6032
This item is no longer available.
As an alternative, we recommend the following item:
Pushbutton, 1 pole, red, illuminated (red), 6 VA, IP50, 1845.6031
Order No.: 39G1695
Manufacturer: Mentor
per pc. 4.7124 € *
Pushbutton switches with LED, type Mentor 1845.

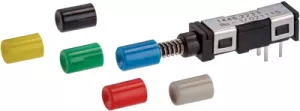

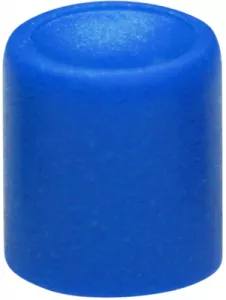

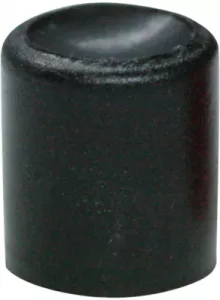

Single-pole; Switching action: off - momentary on (M), for PCB connection. Housing material: PC, black, terminals: tinned, actuating force: max. 5.0 N. Breaking capacity: 0.5 A/60 V AC/DC. Test voltage: 500 V/50 Hz. Contact resistance: max. 200 mohm. Operating temperatures: –40 to +85 °C. The actuator element can be equipped with separately available snap-on plastic buttons.
Technical attributes (type, LED color): 1845.6032, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | black | |
| Breaking capacity | 0.5 A/60 V | |
| illuminated | Yes | |
| Farbe der Beleuchtung | red | |
| Printed | No | |
| Vandal-proof | No | |
| Connection | solder connection | |
| Design | round | |
| Protection class | IP50 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
