Front frame, with integrated filter disc, (L x W x H) 28 x 38 x 2.3 mm, 2656.8222
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.5470 € *
Standard delivery time from the manufacturer is: 1 Week

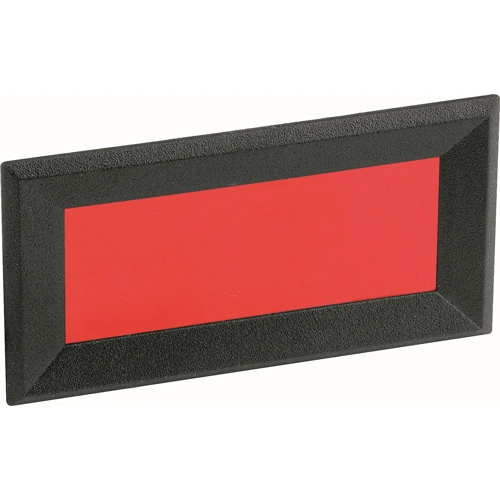

Front bezel with integrated filter pane, 2656.8222, Mentor
Mounting: insertion in recess and securing with retainer disks (no bonding required), max. front-panel thickness: 3.0 mm. Material front bezel: ABS, black. Filter pane: PVC, red.

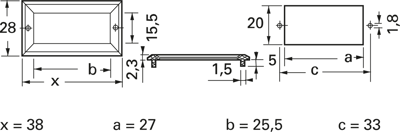

Technical attributes (type. Dimensions x, a, b, c): 2656.8222, x 38, a 27, b 25.5, c 33 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | front frame | |
| Version | with integrated filter disc | |
| Assembly | plug-in mounting | |
| Length | 28 mm | |
| Width | 38 mm | |
| Height | 2.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85319000 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
