1330.1005 | Mentor

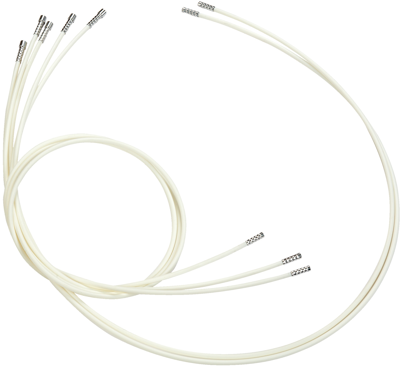

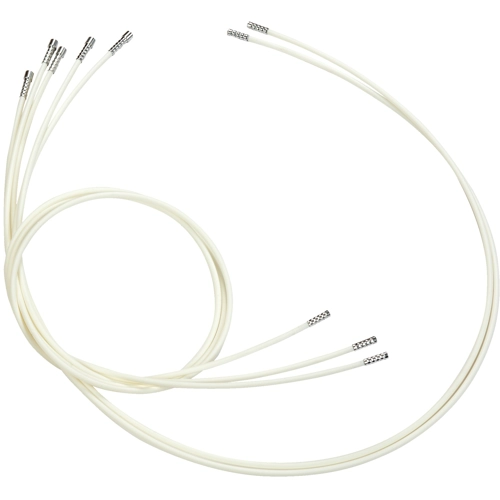

M-Fibre Side light fibre D=3,3mm, L= 1500mm
Active
Product by Mentor at Bürklin Elektronik
M-Fibre Side light fibre, 1330.1005, Mentor

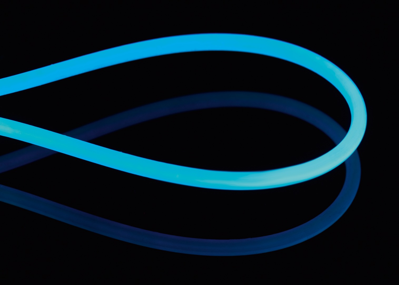

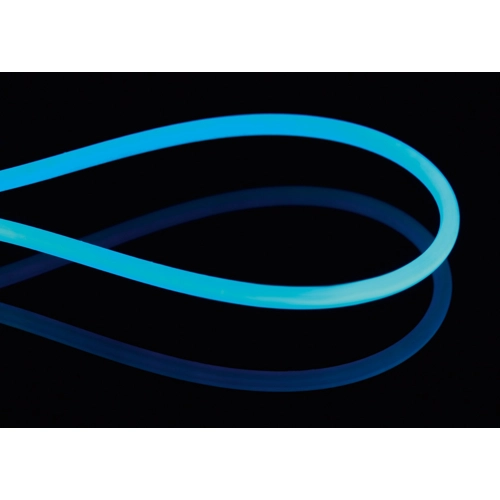

The M-Fibre sidelight fibre enables homogeneous luminance with constant brightness without visible colour deviations at lengths of up to several metres. The combination of individual optical fibres embedded in a diffuse sheath prevents luminance with hotspots depending on the viewing angle. Furthermore, the design of the product ensures that no light losses or spots occur even with small bending radii (Rmin = 20 mm).
| Assembly | Plug-in mounting |
| Customs tariff number | 90011010 |
| Original Packaging | Bag with 5 pieces |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
