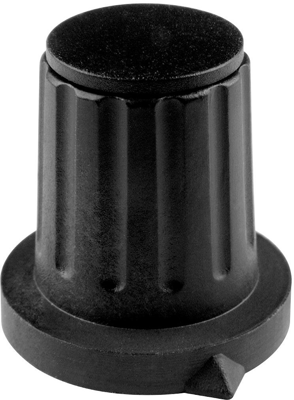

4310.6131 | Mentor
Rotary knob, 6 mm, Plastic, black
Active
Product by Mentor at Bürklin Elektronik
Plastic rotary knobs, type Mentor 4308../4310.
Dull finish, with collet chuck mount and stop collar with index; Knob color: black. The cap is available on separate order.
With 15 mm knob diameter, type 4310.

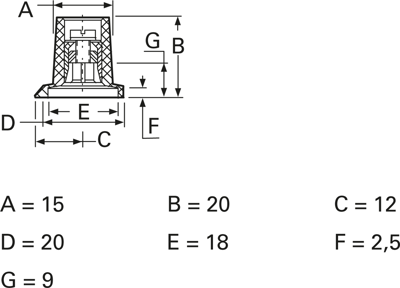

Dimensions: A 15, B 20, C 12, D 20, E 18, F 2.5, G 9.0 mm.
Technical attributes (type, shaft diameter (OD)): 4310.6131, SD 6.0 mm
| Version | pointer knob | |
| Type of mounting | collet mounting | |
| diameter | 15 mm | |
| Colour | black | |
| For shaft diameter | 6 mm | |
| Height | 20 mm | |
| Marking | No | |
| Material | Plastic |
| Country of origin | TN |
| Customs tariff number | 39269097 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
