1341 | Mennekes

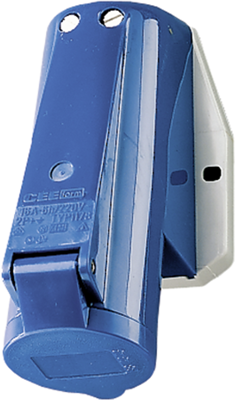

CEE wall socket, 3 pole, 16 A/230 V, blue, 6 h, IP44, 1341
Order No.: 12N262
EAN: 4015394210061
MPN:
1341
Unit Price (€ / pc.)
24.0261 € *
Available: 7 pcs.
Leadtime: 2 Weeks **
Total Price:
24.03 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0261 €
5 pcs.
22.5743 €
15 pcs.
21.7056 €
50 pcs.
20.7536 €
150 pcs.
19.8968 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wall mount CEE receptacles, type Mennekes 1341/1346/0032.
Splashproof to IP 44, with screwless cage clamp technology and narrow flange, for screw mounting from the outside; Version: to DIN VDE 0623, EN 60309-2. Color: electrical-gray and/or color code. Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3-pole/2 P + E, 4-pole/3 P + E, 5-pole/3 P + N + E.
Technical attributes (type, number of poles, operating voltage (50/60 Hz), rated current, color code, top cable entry): 1341, 3–pole, 230 V, 16 A, blue, M 20
Technical specifications
| Connection | spring-clamp connection | |
| Version | wall socket | |
| Colour | blue | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 1.5-4.0 mm² | |
| Nominal power | 16 A/230 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
