LabJack T7 DAQ Minilab, USB, Ethernet, WLAN
Active
Product by Meilhaus at Bürklin Elektronik

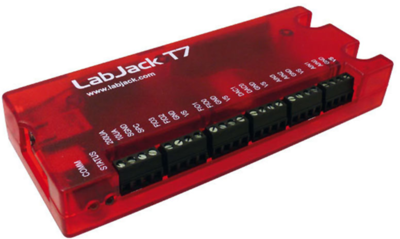

The LabJack T7 with USB, Ethernet and Wireless.
The LabJack T7 has 14 analog inputs with 16 to 22 bit resolution, 2 analog outputs and 23 multifunctional digital-I/Os. Data transmission with USB, ethernet and wireless-LAN.
14 single-ended or 7 differential analog inputs.
16...18 bit depending on speed.
Model -PRO: 24 bit lowspeed ADC for 22 bit effective resolution.
±10, ±1, ±0.1 V range. Programmable gain x1, x10, x100.
2 analog outputs, 12 bit, 0...5 V range.
23 multifunctional digital-I/Os (SPI, I2C, async./master, PWM, pulse outputs, counters, quadrature...).
Built-in CJC temperature sensor.
Watchdog timer.
2 fixed current outputs 200 µA, 10 µA.
USB interface. USB-powered.
Ethernet interface.
Model -PRO: WirelessLAN 802.11b/g
| Analog Output Channels | 2, 12 bit | |
| Analog Input Channels | 14, 22 bit | |
| Digital-I/O | 23 |
| Country of origin | US |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
