NDR-240-48 | MEAN WELL
Power supply, 48 to 55 VDC, 5 A, 240 W, NDR-240-48
Unit Price (€ / pc.)
84.5495 € *
Available: 1 pcs.
Total Price:
84.55 € *
Price list
Quantity
Price per unit*
1 pcs.
84.5495 €
5 pcs.
79.4801 €
50 pcs.
70.3528 €
*incl. VAT plus shipping costs
Subject to prior sale

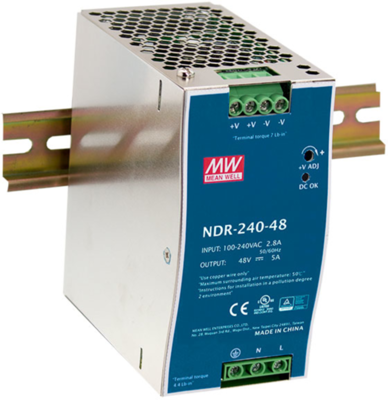

Power supply, NDR-240-48, MEAN WELL
NDR-240-48 is an economical, ultra-slim 240 W DIN rail power supply. The enclosure is 63 mm wide, which allows space savings in cabinets. This unit is suitable for the full input range of 90 VAC to 264 VAC. With an efficiency of up to 90%, it can operate at an ambient temperature between -20 °C and 70 °C under air convection.
Features
- Universal AC input/full range
- Built-in active PFC function
- Protection functions: Short circuit, overload, overvoltage, overtemperature
- Cooling by free air convection
- 100% full load burn-in test
Applications
- Industrial control system
- Equipment for semiconductor manufacturing
- Factory automation
- Electro-mechanical device
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 5 A | |
| Power | 240 W | |
| Width | 63 mm | |
| Height | 125.2 mm | |
| Depth | 113.5 mm | |
| efficiency | 90 % | |
| Output voltage DC | 48 to 55 VDC | |
| Input voltage AC | 90-264 VAC, 127-370 VDC | |
| Number of outputs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
