NDR-120-12 | MEAN WELL

Power supply, 12 to 14 VDC, 10 A, 120 W, NDR-120-12

Order No.: 62C1548
EAN: 4099891286095
MPN:
NDR-120-12
Series: NDR-120
MEAN WELL
NDR-120-12 MEAN WELL DIN Rail Power Supplies

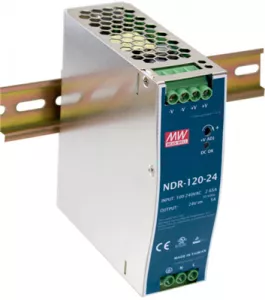

Image may differ
Unit Price (€ / pc.)
45.6365 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
45.64 € *
Price list
Quantity
Price per unit*
1 pcs.
45.6365 €
5 pcs.
42.8995 €
50 pcs.
37.9729 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power supply, NDR-120-12, MEAN WELL

NDR-120-12 is an economical, ultra-slim 120 W DIN rail power supply. The housing is 40 mm wide, which allows space savings in the control cabinet. This unit is suitable for the entire input range from 90 VAC to 264 VAC. With an efficiency of up to 89%, it can operate at an ambient temperature between -20°C and 70°C under air convection.

Features

  • Universal AC input/full range
  • Protection functions: Short circuit, overload, overvoltage, overtemperature
  • Cooling by free air convection
  • 100% full load burn-in test

Applications

  • Industrial control system
  • Equipment for semiconductor manufacturing
  • Factory automation
  • Electro-mechanical device
Technical specifications
Number of outputs 1
Output voltage DC 12 to 14 VDC
Output current 10 A
Width 40 mm
Input voltage AC 90-264 VAC, 127-370 VDC
Height 125.2 mm
Power 120 W
Depth 113.5 mm
efficiency 85.5 %
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
