HDR-60-24 | MEAN WELL

Power supply, 21.6 to 29 VDC, 2.5 A, 60 W, HDR-60-24

Order No.:  62C1524
MPN:
HDR-60-24
Series:  HDR-60
EAN: 4099891285876
MEAN WELL
default L
default S

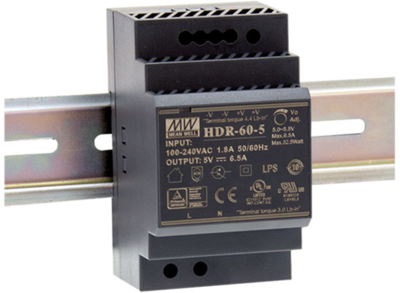

Images may differ
Unit Price (€ / pc.)
38.3537 € *
Available: 89 pcs.
Leadtime: 3 Weeks **
Total Price:
38.35 € *
Quantity
Price per unit*
1 pcs.
38.3537 €
5 pcs.
36.0570 €
15 pcs.
34.6766 €
50 pcs.
33.1415 €
150 pcs.
31.7492 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Power supply, HDR-60-24, MEAN WELL

HDR-60-24 is an economical, ultra-slim 60 W DIN rail power supply. The housing is 52.5 mm wide, which allows space savings in the control cabinet. This unit is suitable for the entire AC input range from 85 VAC to 264 VAC. With an efficiency of up to 91%, it can operate at an ambient temperature between -30 °C and 70 °C under air convection.

Features

  • Power consumption without load <0.3 W
  • Insulation class II
  • Limited energy source
  • DC output voltage adjustable
  • Protection functions: Short circuit, overload, overvoltage
  • Cooling by free air convection
  • LED indicator for power on

Applications

  • Budgetary control system
  • Building automation
  • Industrial control system
  • Factory automation
  • Electro-mechanical device
Technical specifications
Number of outputs 1
Output voltage DC 21.6 to 29 VDC
Output current 2.5 A
Width 52.5 mm
Input voltage AC 85-264 VAC, 120-370 VDC
Height 90 mm
Power 60 W
Depth 54.5 mm
efficiency 90 %
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Search results: 1 item in 3 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Output current
Output voltage DC
efficiency
Power
Depth
Input voltage AC
Width
Height
Number of outputs
Power supply, 21.6 to 29 VDC, 2.5 A, 60 W, HDR-60-24
Order No.:
 62C1524
Manufacturer:
 MEAN WELL
Manufacturer SKU:
 HDR-60-24
Total Price: 38.35 € *
1 pcs.
38.3537 €
5 pcs.
36.0570 €
15 pcs.
34.6766 €
50 pcs.
33.1415 €
150 pcs.
31.7492 €
Available: 89 pcs.
Leadtime: 3 Weeks **
2.5 A
21.6 to 29 VDC
90 %
60 W
54.5 mm
85-264 VAC, 120-370 VDC
52.5 mm
90 mm
1
Power supply, 13.5 to 18 VDC, 4 A, 60 W, HDR-60-15
Order No.:
 62C1523
Manufacturer:
 MEAN WELL
Manufacturer SKU:
 HDR-60-15
Total Price: 33.07 € *
1 pcs.
33.0701 €
5 pcs.
31.0828 €
50 pcs.
27.5128 €
Available: 0 pcs.
Leadtime: On Request **
4 A
13.5 to 18 VDC
89 %
60 W
54.5 mm
85-264 VAC, 120-370 VDC
52.5 mm
90 mm
1
Power supply, 10.8 to 13.8 VDC, 4.5 A, 54 W, HDR-60-12
Order No.:
 62C1522
Manufacturer:
 MEAN WELL
Manufacturer SKU:
 HDR-60-12
Total Price: 33.07 € *
1 pcs.
33.0701 €
5 pcs.
31.0828 €
50 pcs.
27.5128 €
Available: 0 pcs.
Leadtime: On Request **
4.5 A
10.8 to 13.8 VDC
88 %
54 W
54.5 mm
85-264 VAC, 120-370 VDC
52.5 mm
90 mm
1
