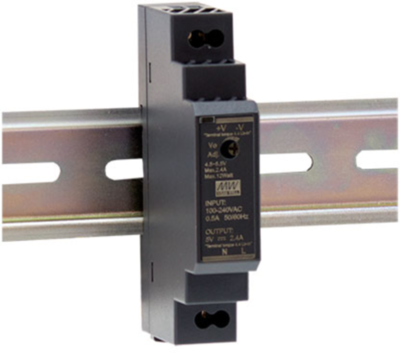

HDR-15-5 | MEAN WELL

Power supply, 4.5 to 5.5 VDC, 2.4 A, 12 W, HDR-15-5

Order No.: 62C1516
EAN: 4099891285791
MPN:
HDR-15-5
Series: HDR-15
MEAN WELL

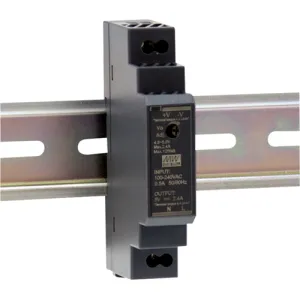

HDR-15-5 MEAN WELL DIN Rail Power Supplies
Image may differ
Unit Price (€ / pc.)
21.0154 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
21.02 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0154 €
10 pcs.
18.4926 €
100 pcs.
16.2316 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power supply, HDR-15-5, MEAN WELL

HDR-15-5 is an economical, ultra-slim 15W DIN rail power supply. The housing is 17.5 mm wide, which allows space savings in cabinets. This unit is suitable for the full input range of 85 VAC to 264 VAC. With an efficiency of up to 87%, it can operate at an ambient temperature between -30°C and 70°C under air convection.

Features

  • Power consumption without load <0.3 W
  • Insulation class II
  • Limited energy source
  • DC output voltage adjustable
  • Protection functions: Short circuit, overload, overvoltage
  • Cooling by free air convection
  • LED indicator for power on

Applications

  • Budgetary control system
  • Building automation
  • Industrial control system
  • Factory automation
  • Electro-mechanical device
Technical specifications
Number of outputs 1
Output voltage DC 4.5 to 5.5 VDC
Output current 2.4 A
Width 17.5 mm
Input voltage AC 85-264 VAC, 120-370 VDC
Height 90 mm
Power 12 W
Depth 54.5 mm
efficiency 80 %
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
