RSP-500-24 | MEAN WELL
Switching power supply, 20-26.4 VDC, 21 A, 504 W, RSP-500-24
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
80.0513 € *
Available in 5 Days: 1,081 pcs. - if ordered today
Total Price:
80.05 € *
Price list
Quantity
Price per unit*
1 pcs.
80.0513 €
3 pcs.
76.0529 €
9 pcs.
72.2449 €
*incl. VAT plus shipping costs
Subject to prior sale

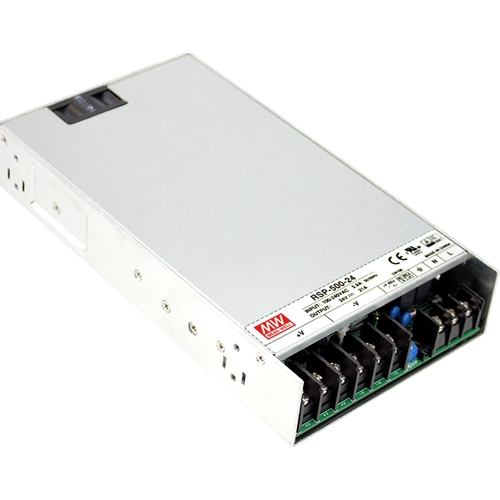

AC/DC Industrial Power Supply, RSP-500-24, MEAN WELL
The RSP-500-24 is a 500W single-output enclosed type AC/DC power supply. It operates with an input voltage of 85 - 264VAC and offers DC output models most commonly demanded by the industry. Each model is cooled by a built-in fan with fan speed control, supporting operation up to 70°C. RSP-500-24 provides design flexibility with built-in functions such as remote ON-OFF control, remote sense, and DC OK signal.
Features
- Universal AC input/ Full range
- Built-in active PFC function
- High efficiency up to 90.5%
- Forced air cooling by built-in DC fan
Applications
- Test and measurement instrument
- Laser related machine
- Burn-in facility
- RF application
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 21 A | |
| Output voltage DC | 20-26.4 VDC | |
| Input voltage AC | 85-264 VAC/120-370 VDC | |
| Power | 504 W | |
| efficiency | 89 % | |
| Length | 230 mm | |
| Width | 127 mm | |
| Height | 40.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
