LOP-200-12 | MEAN WELL

AC/DC Industrial Power Supply, LOP-200-12, MEAN WELL

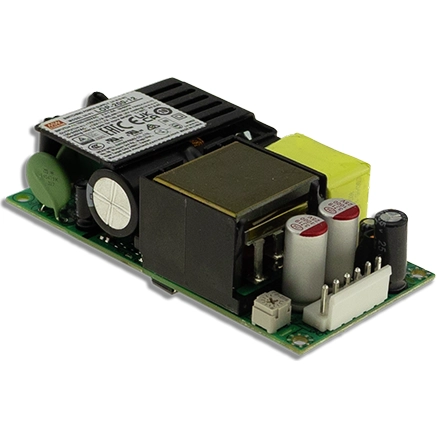

The LOP-200 is a 200W highly reliable, energy-efficient, low-profile open frame type power supply. With a high power density of 25W/in within the standard size of 4" x 2", it features a universal input voltage range of 80~264VAC, making it suitable for global applications. The product features a fixed standard output voltage of 12 V. The main features of the LOP-200 include low standby power consumption (<0.5 W) and high efficiency of up to 94%. It is capable of providing 140 W under natural air cooling and 200 W with forced air cooling. The unit supports a 150% overload capacity for 3 seconds and operates over a wide temperature range of -40 to +80 °C.

The product has obtained multiple safety certifications, including IEC 62368-1, IEC 60601-1, IEC 61558-1, and IEC 60335-1, and is designed to meet 2 × MOPP with an extremely low touch leakage current of <70 µA, making it suitable for BF-class medical devices. With high product safety and excellent EMC performance, the LOP-200 is versatile and suitable for applications such as ITE, medical equipment, industrial control, and home automation. It is a cost-effective slim open-frame power supply.

Applications

• Industrial automation machinery/control system
• Security system
• Mechanical and electrical equipment
• Network equipment
• Telecom devices
• Power sourcing equipment of PoE
• Home automation
• Medical devices
