9071.1101 | Marquardt

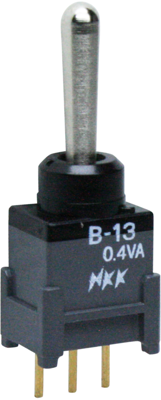

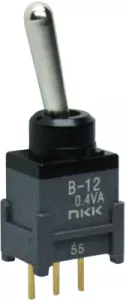

Toggle switch, 1 pole, latching, On-Off-On, 0.4 VA/28 V AC/DC, gold-plated
No longer available from manufacturer
With round flange socket and straight solder pins, type 9070../9071../9073../9074.
Mit rundem Flanschsockel, Betätigungsseite mit Gummiring abgedichtet, Anschlussseite gegen Eindringen von Fluxmittel und Lötdämpfen abgedichtet; Kontakte und Anschlüsse: vergoldet, Anschlussraster: 2,54 mm, Hebel: Metall, vernickelt, rund, Gehäuse: PA, glasfaserverstärkt, grau, Spannung: max. 28 V, Schaltleistung: 0,4 VA, Durchgangswiderstand: max. 50 mOhm, Isolationswiderstand: min. 500 MOhm, Spannungsfestigkeit: mind. 500 VAC, Umgebungstemperatur: –25 bis +85 °C. Tabellenangaben: Typ, Polzahl, Schaltfunktionen Aus (A), Ein (E), Momentein, tastend (M).
Type: 9071.1101, single-pole, ON-OFF-ON
| Connection | PCB connection | |
| Design | vertical | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 0.4 VA/28 V AC/DC | |
| Shift position | On-Off-On |
| Country of origin | JP |
| Customs tariff number | 85365019 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Order No.:
10G236
Manufacturer SKU:
B13AP
