6425.5111 | Marquardt

Short-stroke pushbutton, 1 Form A (N/O), 100 mA/28 V, illuminated, red, actuator (white, L 4.3 mm), 0.7 N, THT, 6425.5111

Order No.: 13G5410
EAN: 4099889206753
MPN:
6425.5111
Series: 6425
6425.5111 Marquardt Tactile Switches

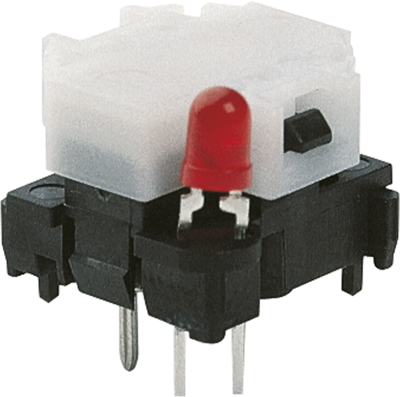

Image may differ
Unit Price (€ / pc.)
2.023 € *
Available: 700 pcs.
Total Price:
202.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
2.023 €

Keyswitches, type Marquardt 6425.

With translucent keycaps for legend inserts, with precise recess for the insert; Design: 1 x NO contact. 16-mm or 19-mm pitch. Breaking capacity: max. 28 V/100 mA. Contact resistance (new condition): max. 250 mohm. Bounce: less than 5.0 ms. Actuating force: approx. 0.7 N. Total travel: 1.6 mm. Ambient temperatures: –20 to +70 °C. Contacts: gold. Connections: tinned. Housing: PBTP. Grid: 5.08 mm. Frame cutout: 13.55 x 13.55 mm. Panel thickness: 1.2 mm. The keyswitch is supplied without keycap.

Keyswitches with submerged LED, type 6425.

Note: current to the integrated LED must be limited to max. 20 mA.

Type: 6425.5111, keyswitch, 16/19 mm, LED red

Technical specifications
Filter Property Value
Latching switching function 1 Form A (N/O)
Breaking capacity 100 mA/28 V
illuminated Yes
Farbe der Beleuchtung red
Actuator colour white
Contact material gold-plated
Connection THT
actuating force 0.7 N
actuator length 4.3 mm
Length 14.8 mm
Width 14.4 mm
Height 10.7 mm
Logistics
Property Value
Customs tariff number 85365011
Country of origin CH
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
