6425.0101 | Marquardt
Short-stroke pushbutton, 1 Form A (N/O), 100 mA/28 V, unlit , actuator (white, L 4.3 mm), 0.7 N, THT, 6425.0101
Unit Price (€ / pc.)
1.9635 € *
Available: 2,594 pcs.
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9635 €
25 pcs.
1.6660 €
100 pcs.
1.5351 €
250 pcs.
1.4637 €
1000 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale

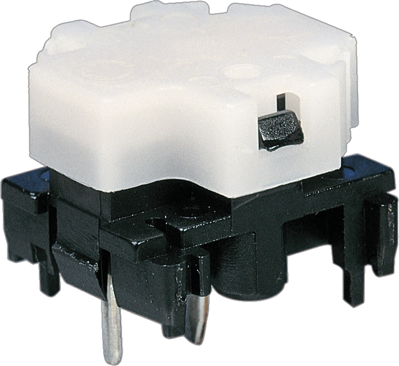

Key switch, 6425.0101, Marquardt
The 6425.0101 key switch offers a pleasant actuating characteristic with low actuation noise, a low bounce time, and comes standard with gold plated contacts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| actuator length | 4.3 mm | |
| Contact material | gold-plated | |
| Breaking capacity | 100 mA/28 V | |
| Latching switching function | 1 Form A (N/O) | |
| Length | 14.8 mm | |
| actuating force | 0.7 N | |
| Connection | THT | |
| Width | 14.4 mm | |
| Height | 10.7 mm | |
| Actuator colour | white | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
