9032.0200 | Marquardt

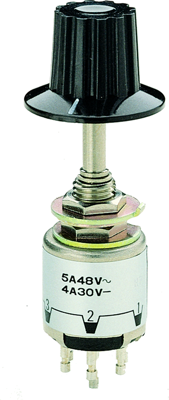

Step rotary switches, 2 pole, 4 stage, 45°, interrupting, 5 A, 30 V, 9032.0200
No longer available from manufacturer
Multistep rotary switches series 9030, type Marquardt 9030../9032.

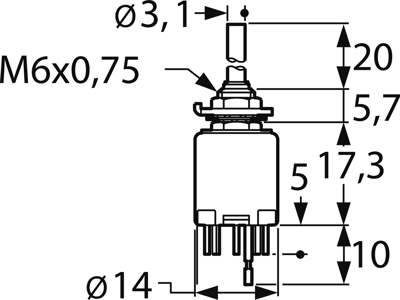

With solder terminals. Terminal side sealed off against the ingress of flux and solder vapors. The number of switch positions can be reduced; Switching circuit: break before make. Number of levels: 1. Contact rating: 5.0 A/48 VAC, 4.0 A/30 VDC. Contact resistance: < 20 mohm. Insulation resistance: > 100 Mohm (500 VDC). Dielectric strength: > 100 VAC (60 s). Socket material: PA. Rotary shaft, housing and mounting parts made of nickel-plated metal. Contacts: silver alloy. Connections: silver-plated. Bushing mount: M6 x 0.75 mm. Panel thickness: max. 2.5 mm. Ambient temperatures: - 25 to +85 °C. Note: The knob is not included and available on separate order.
Technical attributes (type, switch positions, switching angle, diagram (Fig.)): 9032.0200, 2 x 4 contacts, 3 x 45°, Fig. B
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Number of steps | 4 | |
| Rated voltage | 30 V | |
| switching current | 5 A | |
| Switching angle | 45 ° | |
| Breaking capacity | 48 VA | |
| Connection | solder connection | |
| Product type | step rotary switches | |
| Switching Mode | interrupting |
| Property | Value |
|---|---|
| Customs tariff number | 85365015 |
| Country of origin | JP |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
