1802.3102 | Marquardt

Rocker switch, black, 2 pole, On-Off, off switch, 10 (4) A/250 VAC, 6 (4) A/250 VAC, IP40, unlit, printed, 1802.3102

Order No.: 11G150
EAN: 4099889184556
MPN:
1802.3102
Series: 1800
Marquardt

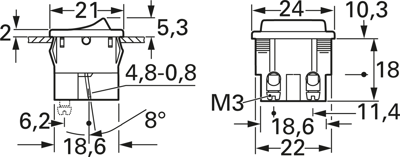

1802.3102 Marquardt Rocker Switches Image 1

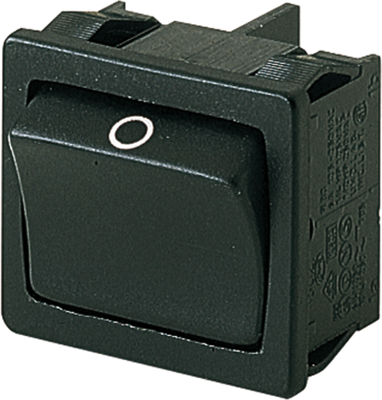

1802.3102 Marquardt Rocker Switches Image 2
Image may differ
Unit Price (€ / pc.)
4.8314 € *
Available: 114 pcs.
Leadtime: 14 Weeks **
Total Price:
4.83 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8314 €
10 pcs.
4.2602 €
100 pcs.
3.7247 €
250 pcs.
3.5938 €
1000 pcs.
3.3558 €
*incl. VAT plus shipping costs
**Subject to prior sale

Rocker switches, break action, double-pole, series 1800, type Marquardt 1802.

Double-pole. Black or white. White or red rocker legend; Breaking capacity: 10 (4.0) A/250 VAC 1E4. Contact resistance (new condition): < 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): > 100 mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40. Suited for devices of safety class II. Rocker and housing material: PA. Contacts: silver. Connections: silver-plated. Snap-on mounting for panel thickness from 0.75 to 3.0 mm. Ambient temperatures: - 20 to +55 °C (connection side up to +100 °C). Certifications: ENEC, UL, CSA.

With universal terminals.

For direct line connection, with combined tab terminals and socket terminals.

Technical attributes (type, connection type, breaking capacity, switch color, rocker legend (Fig.)): 1802.3102, combination terminals, black, Fig. A

Technical specifications
Connection combination connection
Design rectangular
Printed Yes
illuminated No
Actuator colour black
contact surface silver-plated
min. Geräteausschnitt 19.2 x 21.9 mm
Pin number 2 pole
Latching switching function off switch
Breaking capacity 10 (4) A/250 VAC, 6 (4) A/250 VAC
Shift position On-Off
Protection class IP40
Wall thickness 0.75 to 3 mm
Logistics
Country of origin TN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
