5000.0501 | Marquardt

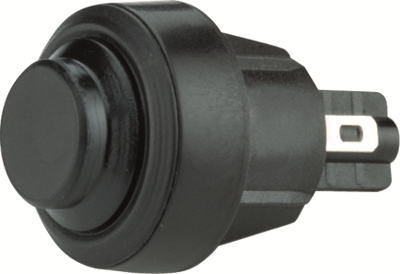

Pushbutton, 1 pole, black, unlit , 4 A/250 V, IP54, 5000.0501
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.7842 € *
Standard delivery time from the manufacturer is: 14 Weeks
Pushbutton switch, 5000.0501, Klauke
Features
- Attractive, round pushbutton switch
- Efficient contact system for at least 200 000 mechanical switching cycles
- Appliance cut-out with diameter 16 mm
- PA glass fiber-reinforced
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | black | |
| Breaking capacity | 4 A/250 V | |
| illuminated | No | |
| Printed | No | |
| Vandal-proof | No | |
| Connection | quick connection | |
| Design | round | |
| contact surface | silver-plated | |
| Wall thickness | 1.4-7 mm | |
| Protection class | IP54 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
| Original Packaging | Carton with 250 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
