5000.0104 | Marquardt

Pushbutton, 1 pole, black, unlit , 4 (2) A/250 VAC, mounting Ø 16 mm, IP40, 5000.0104

Order No.: 12G2658
EAN: 4099889189650
MPN:
5000.0104
Series: 5000

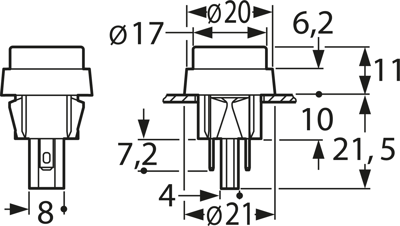

5000.0104 Marquardt Pushbutton Switches Image 1

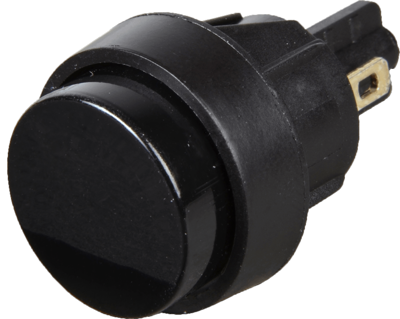

5000.0104 Marquardt Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
3.7842 € *
Available: 178 pcs.
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7842 €
10 pcs.
3.3320 €
250 pcs.
2.9155 €
500 pcs.
2.8084 €
1000 pcs.
2.6894 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton switches series 5000, type Marquardt 5000.

Single-pole, NO contact; Housing color: black. Contact rating: 4.0 (2.0) A/250 VAC. Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II. Insulation resistance: to EN 61058 with reinforced or double insulation. Connection type: 2.8 x 0.8 mm tab terminals. Contact pitch: min. 3.0 mm. Pretravel: max. 2.0 ±0.4 mm. Switch travel: 4.0 mm. Housing and actuator material: PA, glass fiber-reinforced. Contacts: silver. Connections: silver-plated. Combustibility: UL 94 V-2. Installation: snap-on mount for panel thickness from 1.4 to 1.7 mm. Ambient temperatures: –20 to +55 °C (connection side to +85 °C). Test logo: ENEC, UL, CSA.

Technical attributes (type, actuator color): 5000.0104, black

Technical specifications
Filter Property Value
Vandal-proof No
Printed No
Installation diameter 16 mm
contact surface silver-plated
Breaking capacity 4 (2) A/250 VAC
Actuator colour black
Pin number 1 pole
Design round
illuminated No
Connection plug-in connection
Protection class IP40
Latching switching function groping
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Original Packaging Carton with 250 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
