5000.0103 | Marquardt

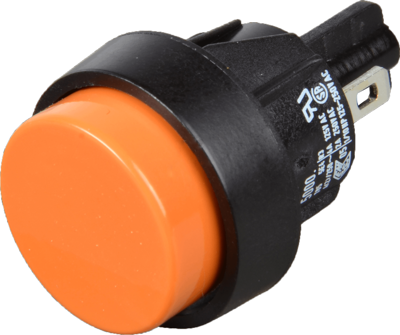

Pushbutton, 1 pole, orange, unlit , 4 (2) A/250 VAC, mounting Ø 16 mm, IP40, 5000.0103
Pushbutton switches series 5000, type Marquardt 5000.
Single-pole, NO contact; Housing color: black. Contact rating: 4.0 (2.0) A/250 VAC. Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II. Insulation resistance: to EN 61058 with reinforced or double insulation. Connection type: 2.8 x 0.8 mm tab terminals. Contact pitch: min. 3.0 mm. Pretravel: max. 2.0 ±0.4 mm. Switch travel: 4.0 mm. Housing and actuator material: PA, glass fiber-reinforced. Contacts: silver. Connections: silver-plated. Combustibility: UL 94 V-2. Installation: snap-on mount for panel thickness from 1.4 to 1.7 mm. Ambient temperatures: –20 to +55 °C (connection side to +85 °C). Test logo: ENEC, UL, CSA.
Technical attributes (type, actuator color): 5000.0103, orange
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 4 (2) A/250 VAC | |
| Vandal-proof | No | |
| Actuator colour | orange | |
| Connection | plug-in connection | |
| Printed | No | |
| Latching switching function | groping | |
| Design | round | |
| Protection class | IP40 | |
| contact surface | silver-plated | |
| Installation diameter | 16 mm | |
| Pin number | 1 pole | |
| illuminated | No |
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
| Original Packaging | Carton with 250 pieces |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
