5000.0101 | Marquardt

Pushbutton, 1 pole, gray, unlit , 4 (2) A/250 VAC, mounting Ø 16 mm, IP40, 5000.0101

Order No.: 12G2654
EAN: 4099889189636
MPN:
5000.0101
Series: 5000

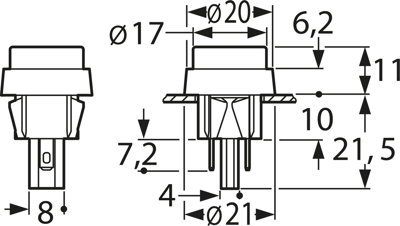

5000.0101 Marquardt Pushbutton Switches Image 1

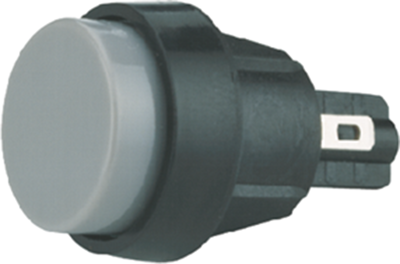

5000.0101 Marquardt Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
3.9389 € *
Available: 1,956 pcs.
Total Price:
3.94 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9389 €
10 pcs.
3.4748 €
250 pcs.
3.0464 €
500 pcs.
2.9155 €
1000 pcs.
2.8084 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton switches series 5000, type Marquardt 5000.

Single-pole, NO contact; Housing color: black. Contact rating: 4.0 (2.0) A/250 VAC. Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II. Insulation resistance: to EN 61058 with reinforced or double insulation. Connection type: 2.8 x 0.8 mm tab terminals. Contact pitch: min. 3.0 mm. Pretravel: max. 2.0 ±0.4 mm. Switch travel: 4.0 mm. Housing and actuator material: PA, glass fiber-reinforced. Contacts: silver. Connections: silver-plated. Combustibility: UL 94 V-2. Installation: snap-on mount for panel thickness from 1.4 to 1.7 mm. Ambient temperatures: –20 to +55 °C (connection side to +85 °C). Test logo: ENEC, UL, CSA.

Technical attributes (type, actuator color): 5000.0101, gray

Technical specifications
Filter Property Value
Latching switching function groping
Connection plug-in connection
Actuator colour gray
illuminated No
Vandal-proof No
Printed No
Protection class IP40
Pin number 1 pole
Breaking capacity 4 (2) A/250 VAC
Design round
contact surface silver-plated
Installation diameter 16 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Original Packaging Carton with 250 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
