1682.1101 | Marquardt
Pushbutton switch, 2 pole, white, unlit , 10 (8) A/250 VAC, 12 (8) A/250 VAC, IP40, 1682.1101

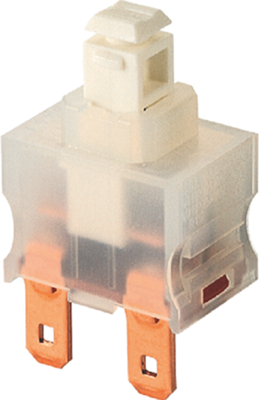

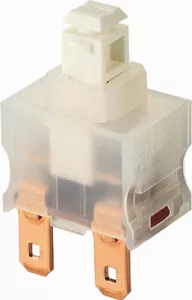

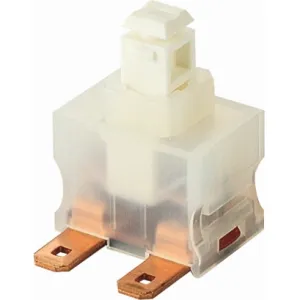

Pushbutton switches, series 1680, type Marquardt 1682.1101.

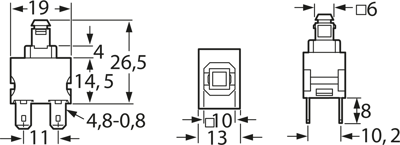

Double-pole. High mechanical strength up to 750 N (for foot switch applications); Breaking capacity: 12 (8.0) A/250 VAC. Contact resistance (new condition): < 100 mohm. (1.0 A/12 VDC). Insulation resistance (new condition): > 100 mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40. Suited for devices of safety class II. Insulation resistance to EN 61058 for reinforced or double insulation. Connection type: 4.8 x 0.8 mm tab terminals. Contact pitch: > 3.0 mm. Housing and base material: plain PA. Actuator: plain PBTP. Contacts: silver. Connections: silver-plated. Ambient temperatures: –20 to +55 °C (connecting side up to +100 °C). Test logos: ENEC, UL, CSA.
Technical attributes (type, number of poles, break action OFF, make action ON, switching force): 1682.1101, double-pole, ON-OFF, 9,0 ±3,0 N
| Connection | plug-in connection | |
| Design | square | |
| Printed | No | |
| illuminated | No | |
| Actuator colour | white | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Breaking capacity | 10 (8) A/250 VAC, 12 (8) A/250 VAC | |
| Protection class | IP40 | |
| Vandal-proof | No |
| Country of origin | DE |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
