1250 04 T7 | Lutronic

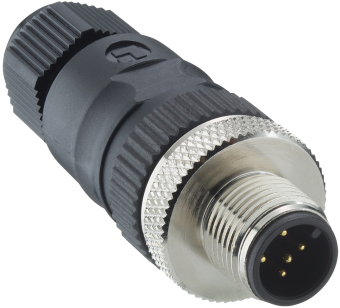

Plug, M12, 4 pole, screw connection, screw locking, straight, 1250 04 T7
Order No.: 48F168
EAN: 4099889691672
MPN:
1250 04 T7
Unit Price (€ / pc.)
8.5680 € *
Available: 26 pcs.
Total Price:
8.57 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5680 €
10 pcs.
7.5446 €
50 pcs.
7.0210 €
150 pcs.
6.7116 €
500 pcs.
6.3903 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1250 04 T7, LUTRONIC
Features
- Contact material: CuZn, Pre-Nickel and Gold-plated
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| Coding | A | |
| contact surface | nickel-plated/gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | screw connection | |
| Thread size | M12 | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
