2420 01 | Lumberg

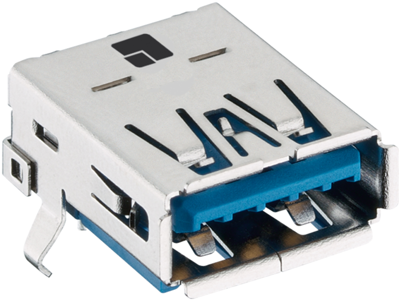

USB-A socket, 9 pole, USB 3.0, PCB connection, 2420 01
Unit Price (€ / pc.)
1.9992 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.00 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9992 €
10 pcs.
1.8564 €
25 pcs.
1.7374 €
50 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale
USB 3.0 chassis socket, 2420 01, Lumberg
Type A, 9-pole, angled, for PCBs; Rated voltage: 100 VAC. Rated current: max. 1.5 A. Insulation resistance: min. 1.0 Gohm. Housing: nickel-plated CuZn. Contact carrier: PBT, glass fiber-reinforced (UL 94 V-0). Contact: CuSn, gold-plated on nickel primer. Insertion/removal cycles: 5000. Operating temperatures: -55 to +85 °C.
Type: 2420 01, USB 3.0 chassis socket.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | A socket | |
| Pin number | 9 pole | |
| USB Standard | USB 3.0 | |
| Contact connection | PCB connection | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
