2410 08 | Lumberg
Panel-mount connector, PCB connection, angled, Gold, Gold
Active
Product by Lumberg at Bürklin Elektronik

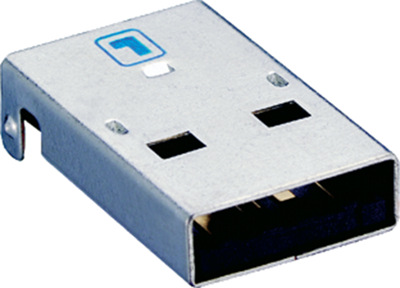

USB chassis plugs, angled, type Lumberg 2410 08.
Type A, 4-pole, for PCBs, compatible to USB 2.0; Rated voltage: 30 VAC. Rated current: max. 1.0 A. Insulation resistance: min. 500 Mohm. Test voltage: 500 V/60 s. Case: steel. Contact block: glass fiber-reinforced PBT to UL 94 V-0. Contact spring: copper alloy, gold-plated on nickel primer. Operating temperatures: –55 to +105 °C.
Type: 2410 08, USB chassis plug
| Version | A-Plug | |
| Contact connection | PCB connection | |
| Assembly | PCB mounting | |
| Pin number | 4 pole | |
| USB Standard | USB 2.0 |
| Country of origin | TW |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
