1502 04 | Lumberg

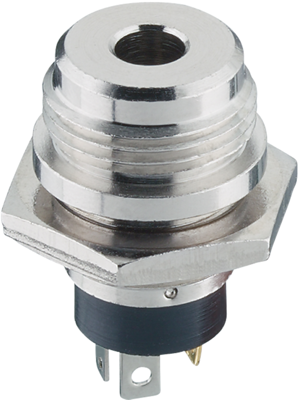

3.5 mm jack panel socket, 3 pole (stereo), solder connection, metal, 1502 04

Order No.:  39F1205
MPN:
1502 04
Series:  1502
EAN: 4099889855463
Lumberg
default L
default S
Images may differ
Unit Price (€ / pc.)
3.0464 € *
Available: 300 pcs.
Leadtime: 22 Weeks **
Total Price:
3.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.0464 €
Description

Jack chassis sockets with screw lock, 3-pole, type Lumberg 1502 04.

3.5 mm, to JIS C 6560 JC35J3A, with solder eyelets for front mounting; Rated voltage: 34 V AC/DC. Rated current: 1.0 A. Test voltage: 500 V (60 s). Insulation resistance: min. 100 Mohm. Contact resistance: max. 50 mohm. Contact material: copper alloy, nickel-plated/gold-plated. Operating temperatures: –20 to +70 °C.

Type: 1502 04, jack chassis socket

Technical specifications
Version panel socket
Colour black
Shell Material metal
Contact connection solder connection
contact surface nickel-plated/gold-plated
Assembly built-in mounting
Pin Diameter 3.5 mm
Pin number 3 pole
Show similar products (0)
Logistics
Country of origin JP
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Accessory

Order No.:

 39F1095

Manufacturer SKU:

 1532 05



Available: 91 pcs.
Leadtime: On Request **
6.53 € per pc. *
*incl. VAT plus shipping costs
1 pcs.
6.5331 €
10 pcs.
5.7596 €
100 pcs.
5.0456 €
250 pcs.
4.8552 €
1000 pcs.
4.5458 €
Variations
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Shell Material
contact surface
Assembly
Version
Pin number
Pin Diameter
Colour
Contact connection
3.5 mm jack panel socket, 3 pole (stereo), solder connection, metal, 1502 04
Order No.:
 39F1205
Manufacturer:
 Lumberg
Manufacturer SKU:
 1502 04
Total Price: 3.05 € *
1 pcs.
3.0464 €
Available: 300 pcs.
Leadtime: 22 Weeks **
metal
nickel-plated/gold-plated
built-in mounting
panel socket
3 pole
3.5 mm
black
solder connection

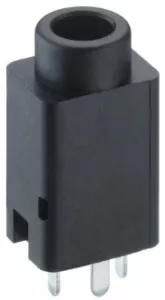

3.5 mm jack panel socket, 3 pole (stereo), solder connection, plastic, 1502 06
Order No.:
 39F426
Manufacturer:
 Lumberg
Manufacturer SKU:
 1502 06
Total Price: 0.86 € *
1 pcs.
0.8568 €
Available: 0 pcs.
Leadtime: On Request **
plastic
silver-plated
PCB mounting
panel socket
3 pole
3.5 mm
black
solder connection
