2,5 MSF/O 04 | Lumberg

Pin header, 4 pole, pitch 2.5 mm, straight, black, 2,5 MSF/O 04

Order No.: 56F5658
EAN: 4099889999525
MPN:
2,5 MSF/O 04
Series: 2,5 MSF/O

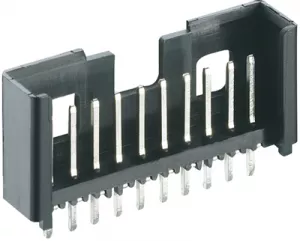

2,5 MSF/O 04 Lumberg PCB Connection Systems Image 1

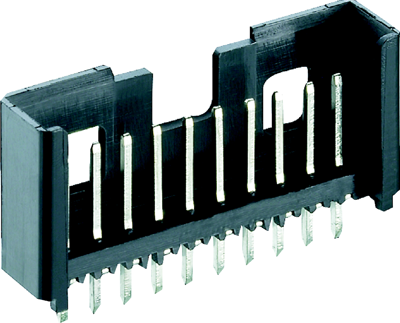

2,5 MSF/O 04 Lumberg PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Available: 2,076 pcs.
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
100 pcs.
0.3451 €
200 pcs.
0.2951 €
*incl. VAT plus shipping costs
Subject to prior sale

Mini-module pin headers, type Lumberg 2,5 MSF/O.

2.5 mm grid, single-row. Mating with socket strips type 2.5 MBX.., 3114.. and 2.5 MBPH.., type 2.5 MSF/O 02 (3114) only mates with socket type 3114; Rated voltage (DIN EN 60664/IEC 60664): 40 VAC (degree of soiling 3), 160 VAC (degree of soiling 2). Overvoltage category (DIN EN 60664/IEC 60664): II (1.5 kV). Rated current: 5.0 A. Contact carrier material: PA 6.6, glass fiber-reinforced, UL 94 V-0. Male contact: CuZn, tinned on nickel primer. Operating temperatures: –40 to +120 °C.

Technical attributes (type, number of poles, dimension A/B/C/D): 2.5 MSF/O 04, 4-pole, A 14.7/B 12.7/C 10.5/D 7.5 mm

Technical specifications
Filter Property Value
Rated voltage 160 V
Rated current 5 A
Type of locking Yes
Grid 2.5 mm
Number of rows 1
Orientation straight
contact surface tin-plated
Version pin header
Colour black
Connection PCB connection
Pin number 4 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Original Packaging Carton with 250 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
