1613 30 VP3 | Lumberg
DC panel jack, angled, with normally closed contact, for printed circuit boards, SMD
Unit Price (€ / pc.)
2.4990 € *
Available: 377 pcs.
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4990 €
10 pcs.
2.2967 €
50 pcs.
2.0944 €
100 pcs.
1.8802 €
*incl. VAT plus shipping costs
Subject to prior sale

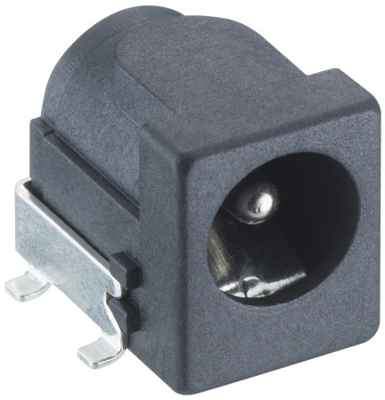

Chassis socket, 1613 30 VP3, Lumberg
Power supply chassis socket, angular version, with break contact, for printed circuit boards, surface mounting technology (SMD).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | No | |
| With bend protection | No | |
| Colour | black | |
| Rated current | 3 A | |
| Outer diameter | 6.5 mm | |
| Version | panel socket | |
| Connection | PCB connection | |
| Assembly | surface mounting | |
| Rated voltage | 24 V | |
| Pin diameter | 2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
