1613 21 | Lumberg
DC panel-mount switched socket, 6 mm, 2,35 mm
Active
Product by Lumberg at Bürklin Elektronik

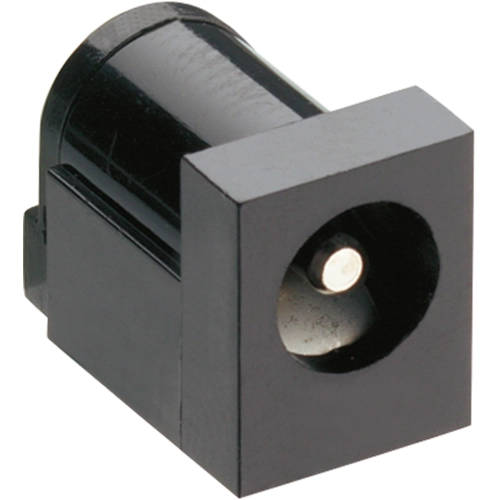

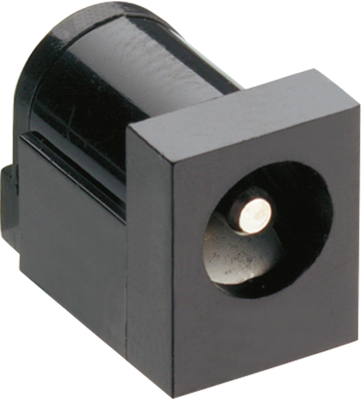

Power supply chassis sockets for PCB mounting, type Lumberg 1613 21.
2-pole, angled, NC contact; Housing: plastic. Color: black. Rated voltage: 12 VDC. Current rating: 3.0 A. Test voltage: 500 V/60 s. Operating temperatures: –20 °C to +70 °C.
Technical attributes (type, center pin diameter CP, mating diameter MD): 1613 21, CP 2.35, MD 6.0 mm
| Connection | PCB connection | |
| Version | mounting socket | |
| Colour | black | |
| Hole diameter | 6 mm | |
| Assembly | built-In mounting | |
| Rated voltage | 24 V | |
| Rated current | 2 A | |
| Latching switching function | Yes | |
| Pin diameter | 2.35 mm | |
| With bend protection | No |
| Country of origin | JP |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
