65363 | Lumberg Automation

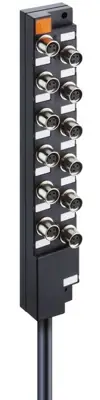

Sensor-actuator distributor, 12 x M8 (3 pole), 65363
Unit Price (€ / pc.)
181.8677 € *
Available: 0 pcs.
Leadtime: On Request **
M8 Actuator/Sensor Distribution Boxe 12-Ports
Pluggable miniature actuator/sensor distribution box with LED operation and function indicators, top-entry, 12-ports, M8 socket, 3-poles, 1 signal per socket, with integrated control cable.
Technical Data
Environmental
Degree of protection: IP 67 / NEMA 6P
Operating temperature range: -25°C (-13°F) / +70°C (+158°F)
Mechanical
Housing: PBT
Insert: PA, self-extinguishing
Contact: CuSn, pre-nickeled and 0.8 microns gold-plated
Receptacle: shell Brass, nickel-plated
O-ring: FKM
Electrical
Contact resistance: ≤5mΩ
Voltage rating: 10-30 V DC
Current rating: 1.5 A per port, 1.5 A max. total
Technical specifications
| Bus Output | M8 (3 pole, A coded) | |
| Bus Input | M8 (3 pole, A coded) | |
| IO Ports | 12 x M8 (3 pole) | |
| Power Input | M8 | |
| Degree of protection (IP) | IP67 | |
| Signal type | PNP |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
