65305 | Lumberg Automation
Sensor-actuator distributor, 4 x M8 (3 pole), 65305
Unit Price (€ / pc.)
95.4856 € *
Available: 0 pcs.
Leadtime: On Request **

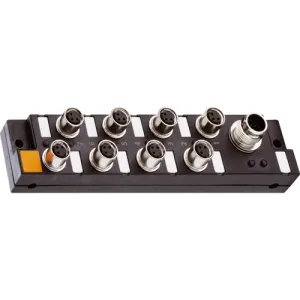

Miniature Sensor/actuator distribution box, type Lumberg ASBSM.
With M8 sockets, 3-pole, status display and M12 cable connection; Rated voltage: 10 to 30 VDC. Rated current (per socket/total): 1,5/1,5 A. Contact resistance: max. 5,0 mohm. Degree of protection: IP 67 (in locked or screwed state). Ambient temperatures: –25 to +70 °C.
Technical attributes (type, version): ASBSM 4/LED 3, 4 sockets
Technical specifications
| Bus Output | M8 (3 pole, A coded) | |
| Bus Input | M8 (3 pole, A coded) | |
| IO Ports | 4 x M8 (3 pole) | |
| Power Input | M12 | |
| Degree of protection (IP) | IP67 | |
| Signal type | PNP |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
