935093004 | Lumberg Automation

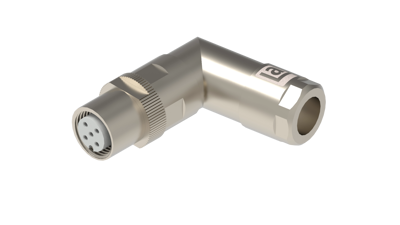

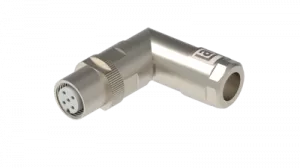

Jack, M12, 5 pole, crimp connection, angled, 935093004
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
37.5326 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
37.53 € *
Price list
Quantity
Price per unit*
1 pcs.
37.5326 €
5 pcs.
35.1883 €
10 pcs.
33.1177 €
25 pcs.
31.2732 €
*incl. VAT plus shipping costs
Subject to prior sale
M12 angle coupling, 935093004, Lumberg Automation
M12 Field Attachable Connector, for railway applications, slim metal housing, IP67, female, 5-pole, A-coded, shielded, angled.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Orientation | angled | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
