932440206 | Lumberg Automation
Panel plug, M12, 4 pole, solder connection, screw locking, straight, 932440206
Unit Price (€ / pc.)
1.9754 € *
Available: 197 pcs.
Leadtime: 10 Weeks **
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9754 €
25 pcs.
1.6660 €
100 pcs.
1.5351 €
250 pcs.
1.4637 €
1000 pcs.
1.3328 €
*incl. VAT plus shipping costs
**Subject to prior sale

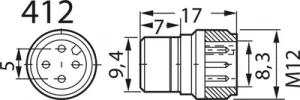

Appliance connector M 12/FIXCON for sensors, type Hirschmann ELST.
For press-fit tube mounting and (only ELST 412 Sn) screw locking; Rated voltage: 150 V AC/DC. Rated current: 4.0 A. Diameter: 1.0 mm. Contacts: CuZn, tinned or gold-plated. solder terminals: max. 0.5 mm². Contact carrier/housing: PA, gray. Degree of protection type 400/412: IP 67/IP 68. Degree of soiling: 3. Operating temperatures: –25 to +90 °C. Standards: IEC 61076-2-101 (Ed. 1), IEC 60947-5-2. Version: type 400 without venting slot, type 412 with O-ring seal. Certifications: UL.
Technical attributes (type, number of poles, contact finish): ELST 400/12 093 Sn, 4-pole, tinned
Technical specifications
| Version | panel plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | solder connection | |
| contact surface | tin-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
