509RGBM2E-004 | Luckylight

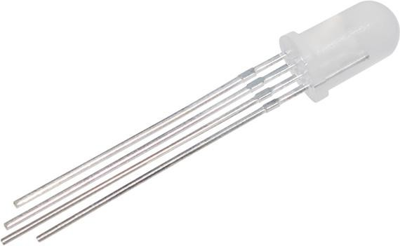

LED, THT, round, Ø 5.85 mm, red/green/blue, 624 nm, 450 to 1000 mcd, 60°, 509RGBM2E-004
Order No.: 66S0072
MPN:
509RGBM2E-004
Unit Price (€ / pc.)
0.1535 € *
Standard delivery time from the manufacturer is: 3 Weeks
Through-hole LED/Multi-Color LED, 509RGBM2E-004, Luckylight
Through-hole Multi-Color LED is suitable for all applications requiring an instrument, switch, icon backlighting, status indication and more. This device is molded from advanced optical grade epoxy, which provides superior high temperature performance and excellent moisture resistance. Diffused or Water Clear is balanced to yield superior light output and a wide viewing angle. The Super Bright Red source color device is made with AlGaInP on GaAs substrate Light Emitting Diode. The Pure Green source color device is made with InGaN on Sapphire substrate Light Emitting Diode. The Blue source color device is made with InGaN on Sapphire substrate Light Emitting Diode.
Features
- Uniform light output
- Low power consumption
- I.C. compatible
- Long life-solid state reliability
Applications
- TV set
- Monitor
- Telephone
- Computer
- Circuit board
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 624 nm | |
| diameter | 5.85 mm | |
| max. operating temperature | 85 °C | |
| Length | 8.65 mm | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 3 | |
| On-State Voltage | 3.6 V | |
| Colour of the LED | red/green/blue | |
| Lens | white | |
| Light intensity typ. | 1 cd | |
| Forward Current | 20 mA | |
| Enclosure | round | |
| Light intensity min. | 0.45 cd | |
| Radiation angle | 60 ° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| MSL | MSL 2A |
| Original Packaging | Bulk with 20,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
