509RGBC2E-002 | Luckylight

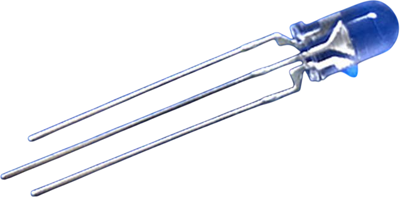

LED, THT, round, Ø 5.85 mm, red/green/blue, 624 nm, 2000 to 4000 mcd, 25°, 509RGBC2E-002
Order No.: 66S0080
MPN:
509RGBC2E-002
Unit Price (€ / pc.)
0.1535 € *
Standard delivery time from the manufacturer is: 3 Weeks
Through-hole LED/Multi-Color LED, 509RGBC2E-002, Luckylight
Through-hole Multi-Color LED is suitable for all applications requiring an instrument, switch, icon backlighting, status indication and more. This device is molded from advanced optical grade epoxy, which provides superior high temperature performance and excellent moisture resistance. Diffused or Water Clear is balanced to yield superior light output and a wide viewing angle. The Super Bright Red source color device is made with AlGaInP on GaAs substrate Light Emitting Diode. The Pure Green source color device is made with InGaN on Sapphire substrate Light Emitting Diode. The Blue source color device is made with InGaN on Sapphire substrate Light Emitting Diode.
Features
- Uniform light output
- Low power consumption
- I.C. compatible
- Long life-solid state reliability
Applications
- TV set
- Monitor
- Telephone
- Computer
- Circuit board
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | red/green/blue | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| Number of LEDs | 3 | |
| On-State Voltage | 3.6 V | |
| Radiation angle | 25 ° | |
| Light intensity typ. | 4 cd | |
| Length | 8.65 mm | |
| min. operating temperature | -40 °C | |
| Forward Current | 20 mA | |
| Light intensity min. | 2 cd | |
| Enclosure | round | |
| Assembly | THT | |
| Wavelength | 624 nm | |
| diameter | 5.85 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 20,000 pieces |
| Customs tariff number | 85414100 |
| MSL | MSL 2A |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
