TPSMD30CA | Littelfuse
TVS Diode, TPSMD30CAAH
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Available in 4 Days: 51,000 pcs.
Leadtime: 1 Week **

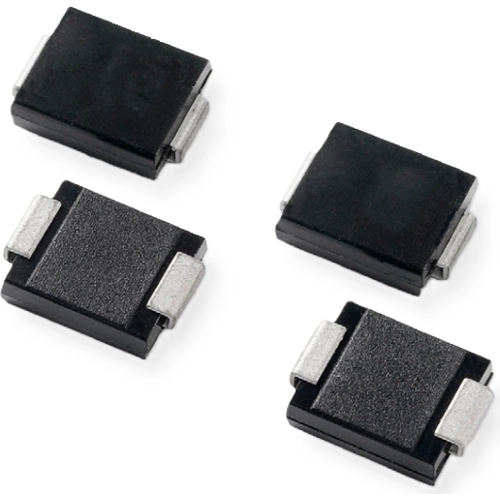

TVS Diode, TPSMD30CA, Littelfuse
TPSMD30CA is a Bi-directional Transient Voltage Suppression (TVS) Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
- High reliability application and automotive grade AEC Q101 qualified
- Excellent clamping capability
- Low incremental surge resistance
- Matte tin lead–free plated
- Halogen free and RoHS compliant
Applications
- Protection of I/O interfaces
- VCC bus
- Telecom
- Computer
- Industrial and consumer electronic applications
Technical specifications
| Version | Bidirectional | |
| Continuous power loss | 6.5 W | |
| Breakdown voltage | 33.3 V | |
| Enclosure | DO-214AB | |
| Pulse power loss | 3 kW | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 30 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
