TPSMB188CA-VR | Littelfuse

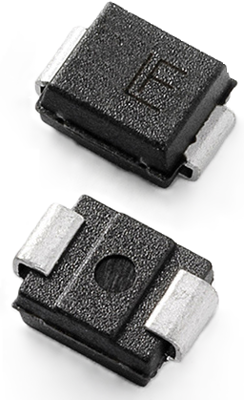

SMD TVS diode, Bidirectional, 600 W, 188 V, DO-214AA, TPSMB188CA-VR
As a private customer, you can buy this item as soon as we have it back in stock.
TVS Diode, TPSMB188CA-VR, Littelfuse
TPSMB188CA-VR is a Bi-directional Transient Voltage Suppression (TVS) Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
- High reliability application and automotive grade AEC Q101 qualified
- Excellent clamping capability
- Low incremental surge resistance
- Matte tin lead–free plated
- Halogen free and RoHS compliant
Applications
- Electronic control units
- BCMs, CAN bus, LIN bus
- Sensors, Entertainment systems
- Portable devices that require high reliability
Technical specifications
| Version | Bidirectional | |
| Continuous power loss | 5 W | |
| Breakdown voltage | 231 V | |
| Enclosure | DO-214AA | |
| Pulse power loss | 600 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 188 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
